2012 Harley Softail Deluxe Specs

2012 Harley Softail Deluxe Specs

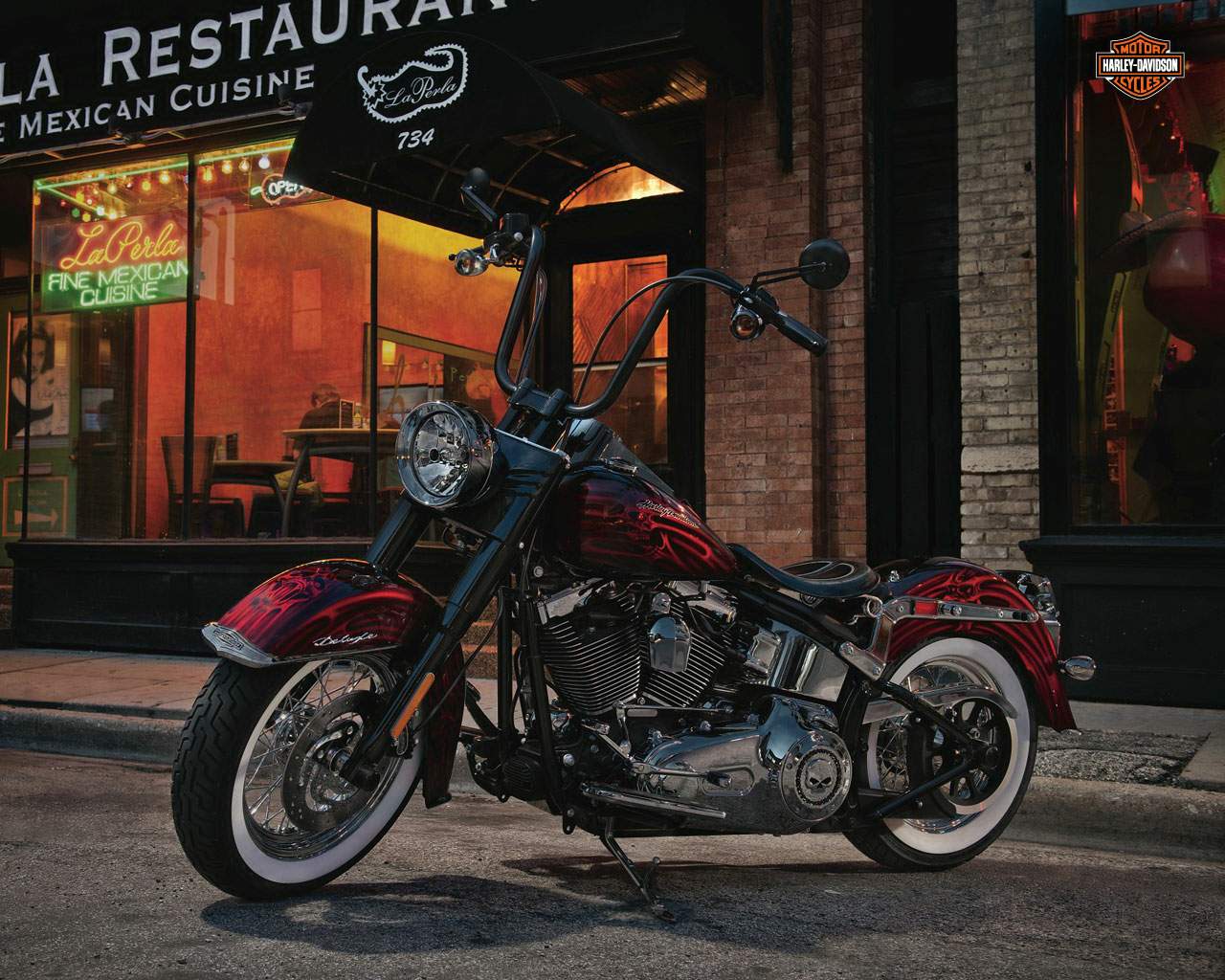

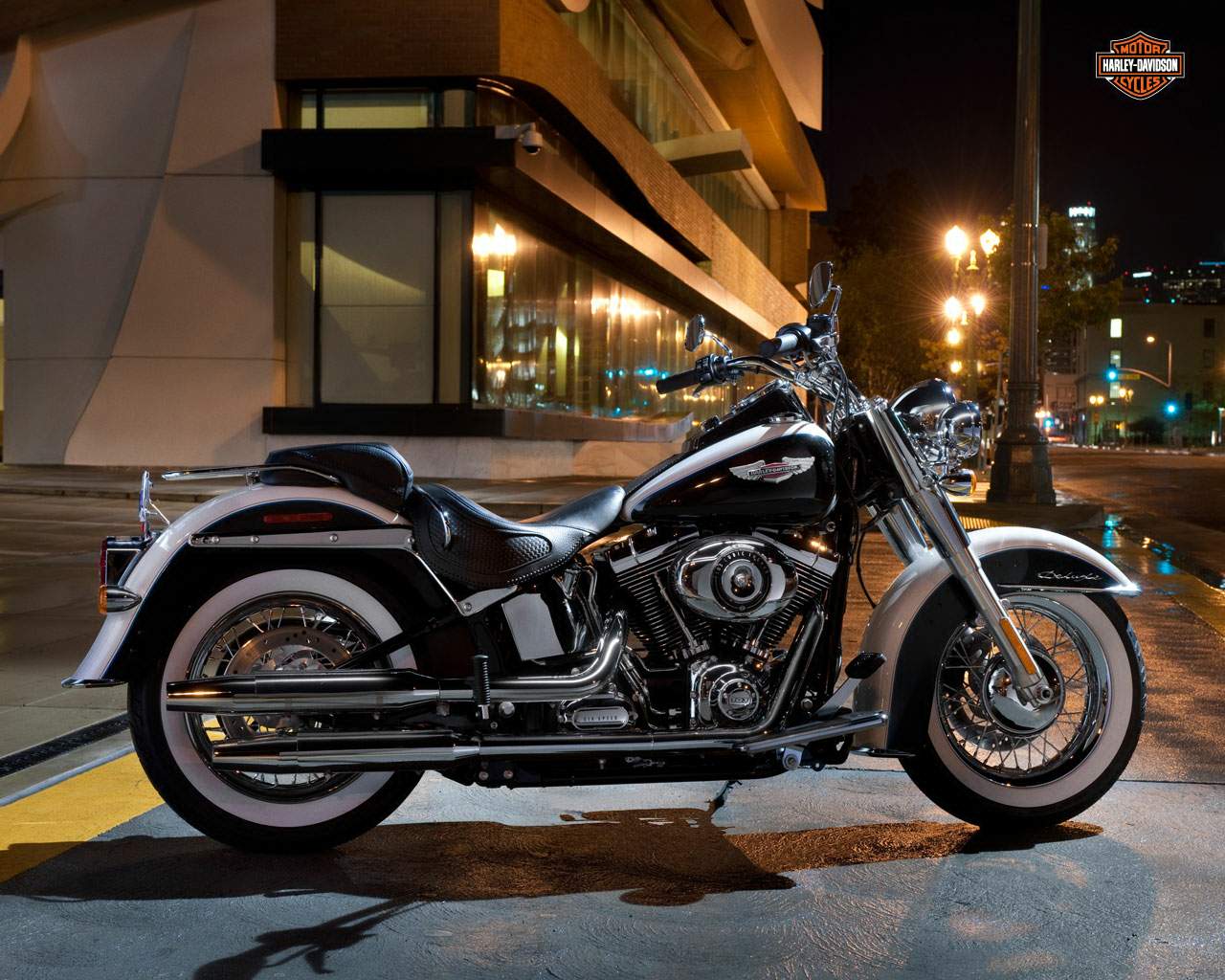

Harley Davidson FLSTN Softail Deluxe

Make Model	Harley Davidson FLSTN Softail Deluxe
Year	2012
Engine	Four stroke, V-Twin, Twin Cam 103� Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Capacity	1690 cc / 103.1 cu-in
Bore x Stroke	98.4 x 111.1 mm
Cooling System	Air cooled
Compression Ratio	9.6:1
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	132 Nm / 98.8 ft. lbs @ 3250 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Final Drive	Belt
Gear Ratio	1st 9.311  2nd 6.454  3rd 4.793  4th 3.882  5th 3.307  6th 2.79
Frame	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 2 piston caliper
Front Tyre	MT90-16 72H
Rear Tyre	MU85B16 77H
Rake	32.1�
Trail	147 mm / 5.8 in
Dimensions	Length  2400 mm / 94.4 in
Wheelbase	1635 mm / 64.2 in
Seat Height	Laden    622 mm / 24.5 in Unladen  670 mm / 25.9 in
Gross Vehicle Weight Rating	526.0 kg / 1160 lbs
Wet Weight	329.0 kg / 726 lbs
Ground Clearance	114 mm / 4.5 in
Oil Capacity	3.3 Litres
Fuel Capacity	18.9 Litres / 5.0 US gal

One of the most confidence-inspiring Big Twins, the Softail� Deluxe features an extremely low seat with "collapsing sides," pull back handlebar and riser, and easy-reach, extended kickstand. The powerful, counter-balanced Twin Cam 96B� and 6-Speed Cruise Drive� transmission are appreciated by many riders. Exquisite style details round out every other corner of this bike, from the clean front light bar, to the tombstone taillight, to the chrome grab rail and luggage rack, to the laced wheels and wide whitewall tires. The addition of the new Security Package option means riders have the choice of adding anti-lock brakes, giving even more functionality to all this form.

New Rigid-mounted, counter-balanced Twin Cam 103B� V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
New Tubeless Chrome Aluminum Profile Laced wheel option
New Paint color options

� Fuel tank sender for accurate fuel-level readings
� Black powder-coated powertrain with chrome covers
� Chrome over/under shotgun exhaust
� Chrome, Laced Steel wheels
� Wide whitewall tires
� MU85B-16 rear tire
� Chrome nostalgic seven-inch ball headlamp
� Chrome oil tank
� Chrome nostalgic tank console with electronic speedometer
� Stainless steel, low-rise handlebar
� Full-length rider footboards
� Two-piece, two-up Softail� seat with �collapsing� sides and removable pillion and chrome grab rails
� Integrated chrome luggage rack
� Tombstone taillight
� Full-coverage front and rear fenders with chrome accents
� 6-Speed Cruise Drive� Transmission
� Horseshoe oil tank
� Five-gallon fuel tank
� Optional Chrome Profile Laced Aluminum wheels
� Optional Original Equipment Custom Color paint program
